Specify a passive RF network or load by first naming its function and calibrated reference plane. Freeze continuous frequency coverage, characteristic impedance, port state, return loss or VSWR, insertion response, average and peak power, pulse width, duty cycle, mismatch or reverse power, mounting temperature, cooling, connector and environment. Then define VNA calibration, power-stress conditions, thermal stabilization, pass/fail limits and retained data. A nominal impedance or wattage alone cannot prove broadband match, pulse survival or safe temperature rise in the installed assembly. Engineering selection for passive RF loads, terminations, matching and equalizing networks, bias-isolation parts and related impedance-control components, bounded by frequency, reference impedance, reflection, power, temperature and environment. A practical method for specifying passive RF loads, terminations and impedance networks by function, reference plane, complex impedance, reflection, insertion loss, waveform power, thermal derating, environment and acceptance evidence.
Procurement and engineering decisions covered
- Passive RF Network & Impedance Components supplier: select the passive function and evidence boundary
- Passive RF Network & Impedance Components manufacturer: define match, waveform power, thermal path and acceptance
- Passive RF Network & Impedance Components technical specifications: separate average heating from peak and pulse limits
- Passive RF Network & Impedance Components selection guide: preserve calibrated complex network evidence
- Passive RF Network & Impedance Components test and verification: verify thermal and environmental configuration
Classify the passive function before selecting a component

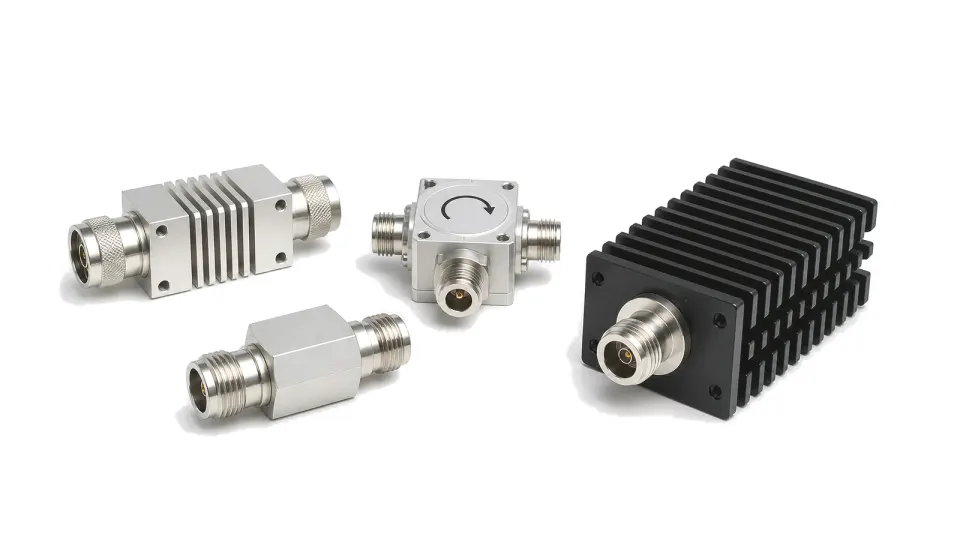

Separate termination from attenuation, matching, equalization, bias isolation, transient protection and non-reciprocal routing. A termination is intended to absorb incident power with controlled reflection. A matching network transforms impedance over a stated band and source/load state. An equalizer deliberately shapes loss versus frequency. A pad trades signal level for improved match and isolation. These functions can share materials or package styles, but their acceptance metrics and failure mechanisms differ. Write the operating state at every port. Unused ports may need a specified termination; switched or multiport paths may present different impedances; a bias network can change with DC current; and a load used during test may see fault power that never appears in normal operation. If the function is not explicit, a proposal can meet one attractive catalog value while failing the system task.
Freeze frequency, characteristic impedance and the reference plane
State continuous frequency intervals, not only a center frequency. Name the reference impedance, normally but not automatically 50 ohms, and identify whether the requirement applies at a connector face, waveguide flange, fixture plane, PCB launch or component pads. Include the connector, adapter, launch, cable and mounting structure only when their effects are intentionally part of the specified assembly. Impedance is complex and frequency dependent. A nominal resistance does not describe package inductance, shunt capacitance, resonances or fixture coupling. For a two-port network, preserve complex S-parameters with phase and the exact port convention. For a one-port load, preserve complex reflection coefficient rather than only a single favorable VSWR point.
Keep reflection, insertion response and dissipated power separate
Return loss, VSWR and reflection coefficient describe the same mismatch at a named plane. Reflected power fraction is the magnitude of the reflection coefficient squared. Insertion loss describes transmitted response through a two-port path; it is not a substitute for input or output match. A matching network can improve source match while adding loss, changing phase or presenting an unsafe impedance at another frequency. Set limits across the entire band and relevant temperature states. When phase, group delay or time-domain behavior matters, require complex data rather than a scalar loss table. Also define out-of-band behavior where a resonance, open circuit or low impedance could stress an upstream amplifier even though in-band match is acceptable.
Translate the waveform into average, peak and thermal stress
List CW or modulated average power, peak envelope power, pulse width, repetition rate, duty cycle, crest factor and fault duration. Average power primarily drives heating; peak voltage and current can drive breakdown, arcing, current density or localized film damage. A duty-cycle calculation is necessary but does not prove that a load can survive the pulse width or peak amplitude. Apply the manufacturer's derating rule at the actual mounting, case, flange, ambient or coolant temperature named by the data. Verify the heat path: baseplate flatness, thermal interface, torque, airflow, coolant flow and allowable stabilization time. A room-temperature power rating without installation conditions is not an acceptance limit.
Evaluate matching and equalizing networks as bounded transformations

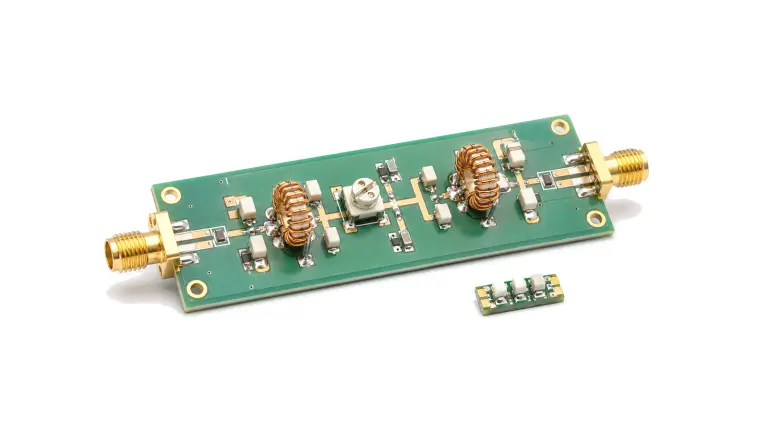

For matching networks, define source and load impedance including tolerances and operating states. Bandwidth, transformation ratio and loaded Q interact; a narrow high-Q solution may be sensitive to component tolerance, temperature, bias and nearby metal. Broadband resistive pads are more tolerant but consume signal power and create heat. Equalizers must be judged by the intended composite response, not by whether their own loss is flat. Check voltage and current stress inside the network, not only at the ports. Reactive elements can experience higher internal voltage or current than the external line suggests. Include self-resonant frequency, Q, dielectric or magnetic loss, parasitics, DC bias, package orientation and board land pattern where those effects set RF performance.
Make mounting, connector and environment part of the configuration
Freeze connector series and gender, torque, flange or baseplate interface, grounding, envelope, mass, orientation, keep-out area and cooling direction. At higher frequency, small changes in launch geometry, connector pin depth, flange alignment or mounting gap can shift the reference plane and degrade repeatability. For a calibrated load, adapters should not be silently added after characterization. Define temperature range, altitude or pressure, humidity, contamination, vibration, shock, ingress and corrosion exposure where relevant. High-power RF behavior can change with pressure and connector condition; absorbers and magnetic materials can change with temperature; and outdoor surge hardware adds its own insertion and return-loss boundary. Electrical survival and performance retention should be separate requirements.
Design the evidence package before the purchase order
For low-power characterization, state the VNA calibration method, calibration standard, connector care, cable stability, fixture removal or de-embedding and uncertainty. Measure enough frequency points to reveal resonances and use the same reference plane in the specification, simulation and acceptance report. A screenshot without calibration identity, raw data and configuration revision is weak evidence. For power acceptance, define incident and reflected power measurement, waveform monitoring, temperature-sensor location, stabilization criterion, airflow or coolant condition and shutdown limit. Repeat critical S-parameter checks after stress. Retain serial number, hardware revision, calibration files, native touchstone data, power/temperature logs and deviations so later replacements can be compared to the original evidence.
Passive network selection and acceptance matrix
| Decision boundary | Requirement to freeze | Reject the proposal when |
|---|---|---|
| Function | Terminate, attenuate, match, equalize, isolate bias or protect | A generic passive part is offered without the circuit task |
| Frequency and ports | Continuous band, impedance, port state and named reference plane | Only center frequency and nominal ohms are shown |
| Small-signal response | Complex S-parameters, return loss, insertion response, phase where needed | Only a typical single-point scalar value is supplied |
| Waveform power | Average, peak, pulse width, duty, crest factor, mismatch and fault duration | One wattage is applied to every waveform |
| Thermal path | Mounting temperature, derating, interface, airflow or coolant and stabilization | The rating assumes unspecified room-air cooling |
| Mechanical and environment | Connector, torque, baseplate, orientation, pressure, temperature and exposure | Configuration changes are excluded from the evidence |
| Acceptance evidence | Calibration, uncertainty, raw data, stress log, serial and revision traceability | Only a catalog curve or screen image is available |
Information required for a passive RF network or load RFQ
- Circuit function and reason for the network, load or termination
- Continuous frequency bands, guard bands and relevant out-of-band states
- Characteristic impedance, source/load impedance ranges, port count and unused-port condition
- Named connector, flange, fixture, PCB or component-pad reference plane
- Return loss, VSWR, insertion loss, phase, group delay or equalization mask by frequency
- CW or modulated average power, peak power, pulse width, repetition rate, duty and crest factor
- Expected mismatch, reverse power, fault duration and upstream source behavior
- Mounting, baseplate, thermal interface, airflow, coolant, ambient and case-temperature limits
- Connector, gender, torque, envelope, orientation, grounding and keep-out requirements
- Temperature, altitude or pressure, humidity, contamination, vibration, shock and ingress
- VNA calibration, fixture removal, power-test method, uncertainty and pass/fail limits
- Sample quantity, first-article evidence, native data, serial traceability and change control
Evidence and configuration boundary
This family covers engineering decisions around terminating, matching, equalizing, absorbing, bias-isolating and protecting RF paths. Published product availability is narrower than the taxonomy, so every RFQ must be checked against an approved product record and configuration-specific evidence. A nominal impedance or wattage alone cannot prove broadband match, pulse survival or safe temperature rise in the installed assembly.
