Phased Array Radar Front End

Phased array radar front ends sit between antenna elements and receiver or transmitter hardware, bringing together filtering, limiter protection, low-noise gain, T/R switching, coupling and monitoring.

Phased Array Radar Front End RF solution visual

Radar front-end boundary

A phased array radar front end conditions RF paths at the antenna side of a radar system. It can combine filters, limiters, low-noise gain stages, transmit/receive switching, couplers and monitoring points before signals move into conversion, processing or higher-power transmit stages.

System context

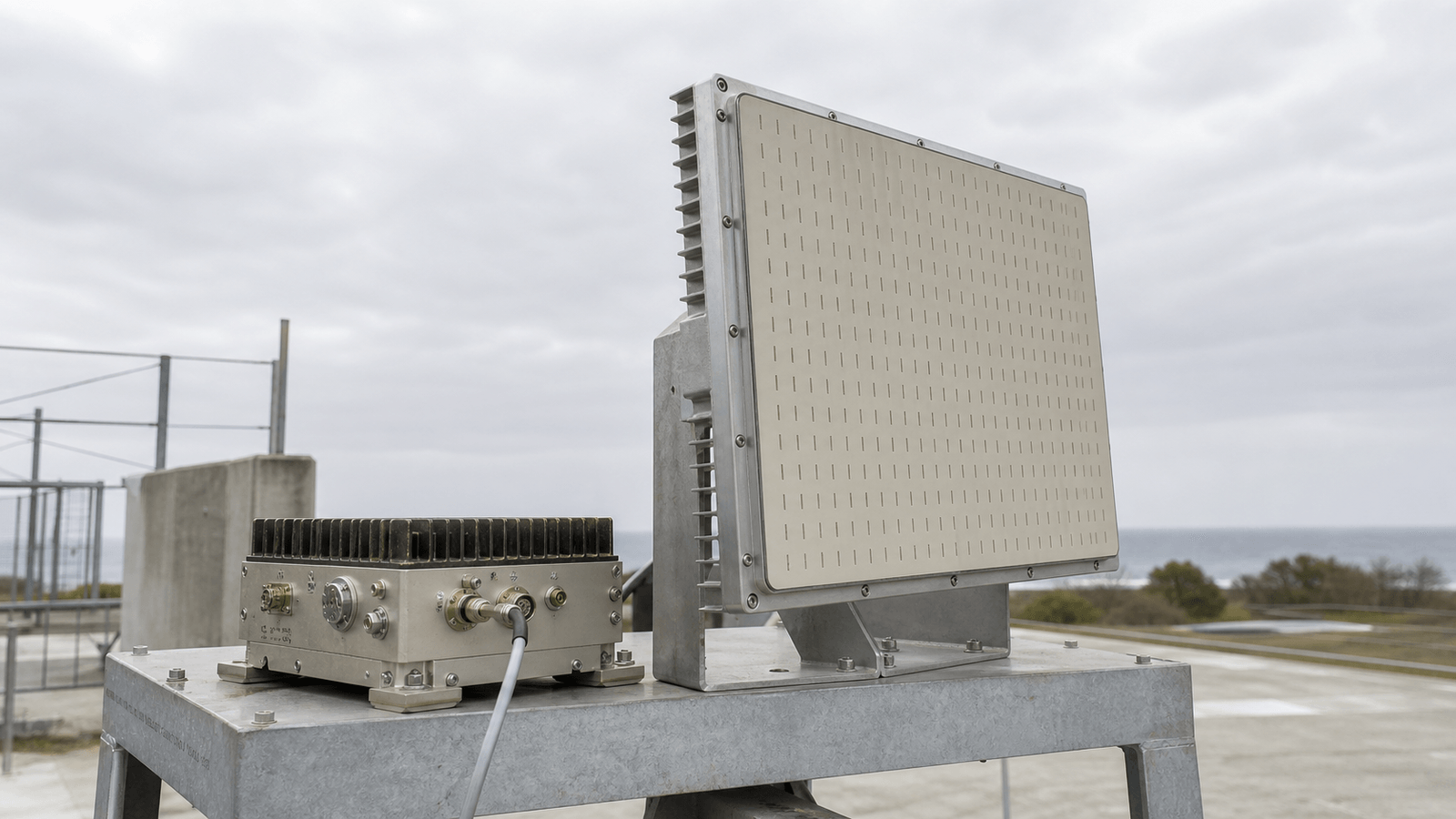

The front end appears in surveillance radar, tracking radar, counter-UAS sensing, phased-array panels and embedded radar subsystems where antenna interface, receiver protection, channel balance and timing behavior affect system performance.

Engineering data

Useful data includes operating band, insertion loss, noise contribution, input protection level, isolation, switching time, phase and amplitude balance, connector or array interface, control method, monitoring points and environmental limits.

Articles

FAQ

How do amplitude and phase errors affect a phased-array radar RF front end?

Channel amplitude and phase errors change coherent addition, beam direction, gain, sidelobes and null depth; their allowed distribution must be tied to the array pattern and calibration model.

What must a radar Tx/Rx protection requirement include beyond receiver survival?

A complete Tx/Rx protection requirement includes survivable peak and average leakage, limiter and switch behavior, residual level, overload recovery, post-pulse gain/noise/phase and the nearest usable range gate.

What is the difference between antenna gain, directivity, beamwidth and sidelobes?

Directivity describes angular concentration, gain includes dissipative efficiency, beamwidth describes main-beam extent and sidelobes describe radiation outside that beam.

How do continuous-wave and pulsed operation change power-amplifier requirements?

CW selection is governed by continuous dissipation and rated output; pulsed selection additionally requires peak power, pulse width, repetition rate, duty cycle, droop, recovery and protection.
