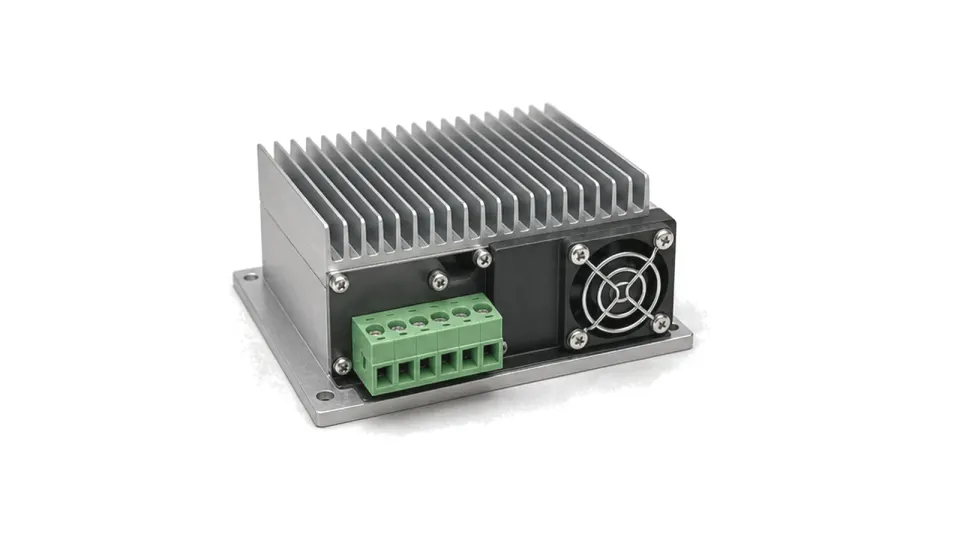

RF Power Amplifier Power Supplies

RF power amplifier power supplies provide the DC rails, bias headroom and protection path required by high-power RF amplifier modules and transmitter shelves.

Project inquiryDownload product list
RF Power Amplifier Power Supplies
Semiconductor RF Process EquipmentRF hardware for semiconductor process tools, covering plasma power paths, reflected-power monitoring, control and cooling.Broadcast & RF TransmissionBroadcast and RF transmission systems carry scheduled or continuous RF output through transmitter chains, filters, feed lines and antenna networks.Industrial Heating & Plasma RFIndustrial heating and plasma RF applications use controlled RF or microwave energy in process equipment, RF heating loads, plasma chambers and scientific instruments.
High Power Amplifier Supply & CoolingHigh-power RF amplifiers need a supply and cooling path that keeps voltage, current and heat flow inside the amplifier operating envelope, including PA supply rails, bias/control hardware, thermal assemblies, reflected-power monitoring and protection inputs.Transmitter Power Amplifier ChainA transmitter power amplifier chain raises a controlled RF or microwave drive signal to the output level required by an antenna, load or test interface.GaN Power Amplifier PlatformGaN power amplifier platforms combine RF power devices, bias control, supply margin, monitoring and thermal hardware for compact high-power stages.Broadband SSPA Power ChainBroadband SSPA power chains use solid-state RF amplifier stages to deliver controlled output power across wide operating bands.

FAQ

How should an RF power amplifier supply be sized for peak current, duty cycle and load transients?

Separate average and RMS heating from pulse-on current, edge-rate demand, inrush and fault current, then verify rail droop and recovery at the module terminals.

How much power-supply ripple and noise can an RF amplifier tolerate?

There is no universal ripple limit; derive a rail spectrum from the allowed RF spur or noise contribution and the amplifier's supply sensitivity under the real operating condition.

What thermal-interface data are needed before selecting air or liquid cooling for an RF power module?

Define dissipated heat, temperature reference, interface stack, airflow or coolant conditions and loss-of-cooling behavior before comparing cooler ratings.

Engineering inquiry

Share your RF requirement

Share the product, operating requirements and project context. Our engineering team will route your request to the right specialist.

AttachmentsAttach drawings, BOMs, specifications or test files. Up to 5 files, 10 MB each and 25 MB total.
or drag and dropPDF, DOCX, XLSX, CSV, TXT, JPG, PNG, S1P and S2P
Typically reviewed within one business dayProject information is handled confidentially

RF Power Amplifier Power Supplies

RF power amplifier power supplies deliver the controlled DC energy used by solid-state RF amplifiers, driver stages and high-power transmitter modules. They keep the amplifier rail, bias path and protection circuits stable while the RF load, duty cycle and thermal condition change.

Where they are used

They appear in SSPA shelves, radar and broadcast transmitters, RF process equipment, amplifier test benches and compact microwave subsystems that need repeatable high-current supply behavior.

Engineering factors

  • Output voltage, current margin and transient response determine whether the amplifier can hold its operating point under modulation or pulse load.
  • Ripple, noise and remote-sense behavior affect bias stability and RF repeatability.
  • Sequencing, fault shutdown, monitoring signals, cooling and connector layout define how the supply is integrated into the wider transmitter or rack system.
