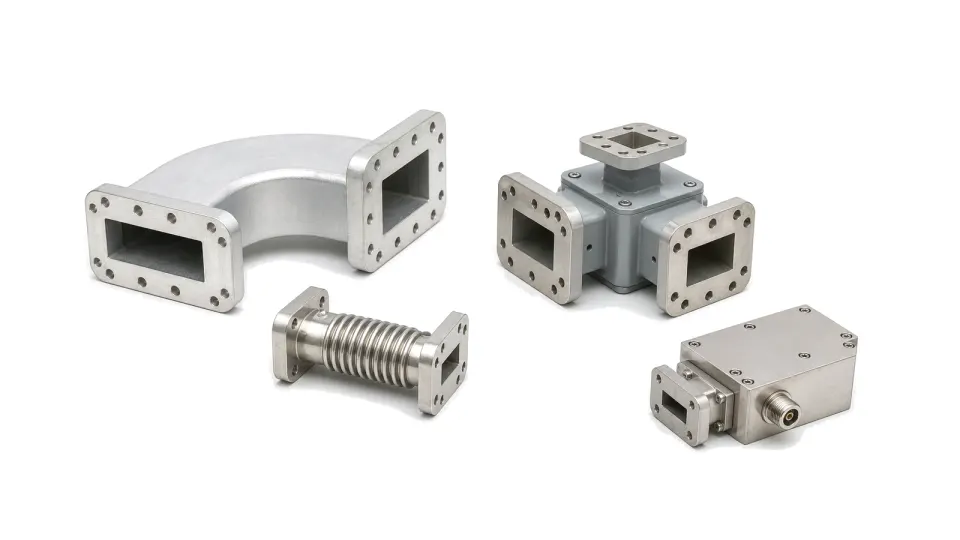

Waveguide & Millimeter-Wave Hardware

Freeze band, mode and every discontinuity before selecting hardware

Start with the continuous operating band, verification band and any guard band rather than a center frequency. Name the waveguide designation and internal aperture, intended dominant mode, polarization and propagation direction. Check cutoff margin and the risk of higher-order modes for the actual aperture, transitions and bends. Frequency overlap on two catalog pages does not establish low-loss compatibility or mode purity. Draw the entire path from the calibrated source plane to the calibrated receive or load plane. Include straight sections, bends, twists, tapers, steps, coax launches, windows, flexible sections, orthomode functions, couplers, isolators, loads and removable adapters. Identify where polarization rotates, cross-section changes or symmetry is broken. Those locations own reflection, conversion, field concentration and mechanical tolerance risk.

Specify flange geometry, surface condition and assembly repeatability

For every joint, state the flange family and drawing, aperture dimensions and orientation, cover or choke form, mating face, alignment pins, fastener pattern, gasket or seal and clocking datum. Do not treat visually similar flanges as interchangeable. A compatible bolt pattern can still conceal a shifted aperture, wrong orientation, different locating scheme or a reference plane that moves when an adapter is added. Control face flatness, perpendicularity, aperture position, burrs, plating, surface damage and cleanliness. Define support points, allowed cantilever load, fastener sequence, torque method and remate limit. Inspect before assembly and after environmental or high-power work. Connection repeatability should be measured through deliberate disconnect and reconnect cycles with cables, converters and heavy components mechanically supported.

Make calibration standards, reference planes and uncertainty part of the design

Choose a VNA calibration method and standard set that match the waveguide band, port topology and insertability. Record standard definitions, dimensions, line or offset values, kit identity, temperature and certificate status. State where the calibrated planes are located and whether adapters, tapers, converters, fixtures or support movement remain in the result. A successful instrument calibration indicator does not prove that the physical reference plane matches the drawing. Use verification standards and residual checks that are independent enough to reveal a poor calibration. Quantify connection repeatability, drift, cable or converter movement, leakage, receiver dynamic range and dimensional uncertainty. Non-insertable or directional devices may require two calibrations or an adapter-characterization method; preserve native complex data and the uncertainty propagation rather than reporting corrected plots alone.

Close acceptance with dimensional, RF and configuration evidence

The acceptance package should identify every part and serial, material and finish, controlled drawing revision, flange and aperture inspection, assembly orientation, support configuration, calibration and instrument state, environmental condition, raw complex data, corrected result, uncertainty and pass limits. Photographs can support configuration identity, but they do not replace dimensions or RF evidence. Record any adapter used during acceptance and whether it ships with the assembly. Define incoming inspection, assembly traveler, cleaning and protective-cap rules, storage, remate controls, repair and re-test triggers. Changes to flange source, internal dimensions, plating, machining method, material, braze, length, support or calibration standard can alter the result even when the family name is unchanged. Approve substitutions only after interface, electrical, power, metrology and documentation impacts are reviewed.

Waveguide family and acceptance matrix

Information to include in a waveguide or millimeter-wave RFQ

• Operating, guard and verification frequency bands
• Waveguide designation, internal aperture, intended mode and polarization
• Complete path topology and port map, including removable adapters and terminations
• Flange drawings, mating parts, clocking, alignment, fasteners, seals and orientation
• Insertion loss, return loss, isolation, directivity, phase, delay and leakage limits with planes and conditions
• Waveform, peak and average power, pulse width, duty, repetition rate, mismatch and fault duration
• Temperature, pressure, altitude or vacuum, gas, cooling and environmental states
• Material, plating, finish, roughness, cleanliness and internal geometry controls
• Mechanical length, electrical length, bend and twist geometry, flatness, tolerance and support loads
• Assembly, torque, cleaning, inspection, protection and remate requirements
• Calibration method, kit and standard definitions, reference planes and insertability constraints
• Required uncertainty, repeatability, residual, drift and native-data evidence
• Power, environmental, dimensional and RF acceptance methods and pass limits
• Serial traceability, drawing revision, certificates, change notification, substitutions and re-test triggers
