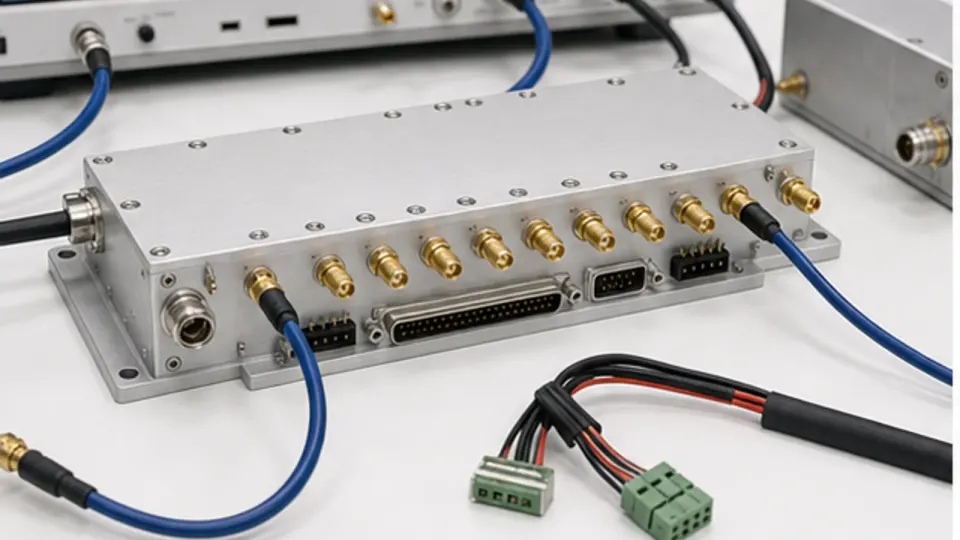

Start with a route-state contract, not a switch technology
The correct switch is the one that realizes every permitted route, blocks every forbidden route and remains inside the RF, power, timing and lifecycle limits of the complete path. Draw the port map first. Name normal, bypass, calibration, all-off, safe and fault states; mark simultaneous routes and forbidden cross-connections. Then allocate insertion loss, return loss, isolation, power and timing to the switch network at the external connector planes. Technology follows that contract rather than leading it.
Freeze topology and port states before selecting hardware
Begin with a state table. An SPST opens or closes one path; an SPDT selects between two paths; an SPnT selects one of several throws; a transfer switch exchanges two paired paths; and a matrix may be blocking, nonblocking or partially fan-out capable. These labels are not interchangeable. A matrix that supports every source-to-destination pair one at a time may still fail when the project needs simultaneous routes, a protected bypass or a calibration loop.
Include power-up state, loss of control power, emergency safe state and transition state. State whether the design must be latching, failsafe or momentary, and whether a position indicator reports the commanded state or the physical contact state. If two RF sources must never be connected, identify that as a forbidden state and decide whether hardware interlock, controller logic or both enforce it. The route table should be testable without interpreting a block diagram.
Budget loss, match, isolation and crosstalk over the complete route
Specify a continuous operating range at named connector planes. The narrowest switch, connector, cable, transition and termination defines the usable path. Add the maximum insertion loss of every series element, then include cable aging, temperature drift and connector repeatability. For a receive path, pre-LNA switch loss raises the cascaded noise figure. For a transmit path, the same loss reduces delivered power and creates heat inside contacts or semiconductor structures.
Isolation is directional leakage between a named source and destination in a declared state; crosstalk is unwanted coupling between active routes. Neither is a universal device number. Close the leakage budget by subtracting minimum isolation from the maximum aggressor level at the same reference planes, then compare the residual with damage, compression, blocker, desensitization or measurement-floor limits. Measure the longest route, the most adjacent routes and all states that place high-level and sensitive paths close together.

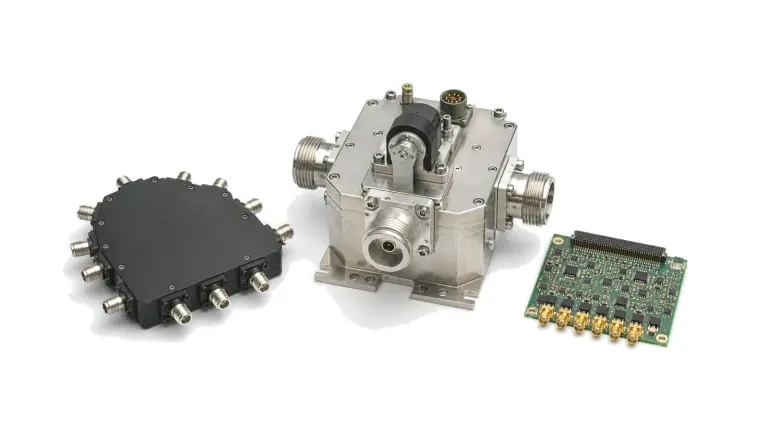

Choose off-port behavior and technology from the system boundary
A reflective switch leaves an unselected port in a high-reflection state; an absorptive or terminated switch presents a defined impedance through an internal load over a stated range. That difference affects source stability, stored energy, filter response, amplifier protection and switching transients. Do not assume every off port is safely terminated. State the required impedance, frequency range, power at the internal termination and whether all-off behavior is available.
Solid-state and PIN-diode switches can favor fast state changes, high cycle counts and compact integration, but their loss, off-state leakage, linearity, control bias and power limits must be checked under the actual waveform. Electromechanical or coaxial relays can favor low loss, high isolation and broadband behavior in some designs, while switching speed, contact life, hot-switch stress, vibration and size may dominate. MEMS, waveguide and other technologies occupy different boundaries. Select by measured requirements, not by a universal ranking.
Separate steady-state power from switching-state stress
State CW, average, pulse and peak power, duty cycle, crest factor, source and load VSWR, reverse power and temperature for every path. A switch may carry a high level after contacts are settled yet tolerate much less while changing state. Cold switching removes or blanks RF before motion or semiconductor commutation. Hot switching changes state with RF present and can create contact arcing, transient current, voltage peaking or semiconductor overstress. Use the supplier limit that matches the real frequency, waveform, temperature and transition condition.
Define the sequence as a timed contract: RF ramp-down, blanking confirmation, break-before-make or make-before-break interval, command edge, contact or logic transition, debounce, RF settling, power ramp-up and receiver recovery. Digital command latency is not RF settling time. Measure residual amplitude, phase, leakage and transient energy until the routed signal meets its final tolerance. Include behavior after command interruption and simultaneous commands.
Treat control, lifetime and repeatability as RF specifications
Freeze logic levels, supply rails, coil or driver current, latching pulse width, interface protocol, addressing, isolation, grounding, indicators, interlocks and power-up state. For remote matrices, include command acknowledgement, state readback, timeout, retry and fault reporting. Control wiring can inject noise or create ground loops, so verify the RF path while control interfaces exercise worst-case transitions.
Cycle life is meaningful only with the applied power, switching condition, temperature and load. For measurement systems, insertion-loss and phase repeatability can dominate uncertainty even when average loss remains inside a catalog limit. A static calibration removes the measured path at one time; it cannot remove state-to-state or cycle-to-cycle variation that occurs later. Establish route-specific verification intervals, check paths and replacement criteria before the matrix becomes part of an automated process.
| Decision block | Requirement to freeze | Reject the proposal when |
|---|---|---|
| Topology and states | Port map, simultaneous routes, bypass, safe, all-off and forbidden states | Only a port count is supplied |
| RF path | Continuous band, maximum insertion loss, return loss, phase or delay and path variation | Only a typical center-frequency value is shown |
| Leakage | Minimum isolation and crosstalk for named aggressor-victim routes and states | Isolation has no direction, state or power context |
| Power | CW, average, pulse, peak, mismatch, temperature, hot/cold state and termination load | A carry-power value is used as a switching-power limit |
| Timing and control | Command, interlock, transition, debounce, RF settling, recovery and readback | Digital latency is treated as settled RF performance |
| Life and verification | Cycles, repeatability, route calibration, check interval, raw traces and decision rule | Life is quoted without power and switching conditions |
Worked path budget: the component limit is not the matrix limit
A routed receive path contains three switch stages with maximum losses of 0.45 dB, 0.55 dB and 0.40 dB, plus 0.80 dB of cables and transitions. The route budget is therefore 2.20 dB before margin, not the 0.40-0.55 dB shown for any one switch. If a +30 dBm aggressor is adjacent to a receiver that tolerates -45 dBm at its declared plane, the arithmetic isolation need starts at 75 dB before uncertainty and margin. Two cascaded 45 dB isolation claims do not automatically provide 90 dB because enclosure, connector, control-line and parallel-route coupling can bypass the intended series path. Measure the assembled aggressor-victim pair at the real ports and states.
Verify every required route and every dangerous transition
- Freeze the route-state table, port names, terminations, control commands, forbidden combinations and safe state.
- Calibrate or characterize cables and fixtures to the external connector planes; preserve raw complex S-parameters where phase matters.
- Measure insertion loss, return loss and phase for every required route over frequency, temperature and representative cycle states.
- Drive one route while measuring isolation and crosstalk into every sensitive unselected or simultaneous route with adequate dynamic range.
- Verify absorptive or reflective off-port behavior and the power dissipated in internal or external terminations.
- Run cold- and hot-switch tests only within approved limits; capture transient leakage, overshoot, blanking, settling and recovery.
- Cycle representative paths under the declared power and environment, then trend loss, phase, isolation, readback and contact behavior.
- Retain route map, firmware, calibration identity, command log, raw traces, temperature, power state, cycle count and failures.
Switching failures that escape a data-sheet comparison
- Selecting by port count without proving simultaneous or forbidden route states
- Adding component loss while ignoring cables, connectors and unequal route lengths
- Treating one isolation number as valid for every source, destination and state
- Assuming an unselected port is terminated without checking reflective or absorptive behavior
- Using steady-state carry power as the allowed hot-switch power
- Equating command response with RF amplitude and phase settling
- Calibrating once and ignoring insertion-loss or phase repeatability over cycles
- Omitting power-up, control-loss, interlock and physical-state readback behavior
Information required for an RF switch or switch-matrix RFQ
- Port names, connector or package, route matrix, simultaneous paths, bypass and forbidden states
- Continuous frequency ranges, impedance, path-loss and return-loss limits at external planes
- Minimum isolation and crosstalk for each critical aggressor-victim pair and operating state
- Reflective, absorptive, all-off and unused-port termination requirements
- CW, average, pulse and peak power, duty cycle, VSWR, reverse power, temperature and hot/cold switching
- Break-before-make or make-before-break sequence, blanking, transition, RF settling and recovery limits
- Logic, supplies, driver or coil current, latching, protocol, addressing, readback, interlock and fail state
- Cycle life, insertion-loss and phase repeatability, vibration, shock, mounting and service interval
- Path calibration, verification points, uncertainty, raw-data format, command logs and acceptance rule
