Synthesized RF Sources

Synthesized RF sources generate tunable RF or microwave outputs through frequency synthesis where step size, switching time and spectral purity matter.

Project inquiryDownload product list

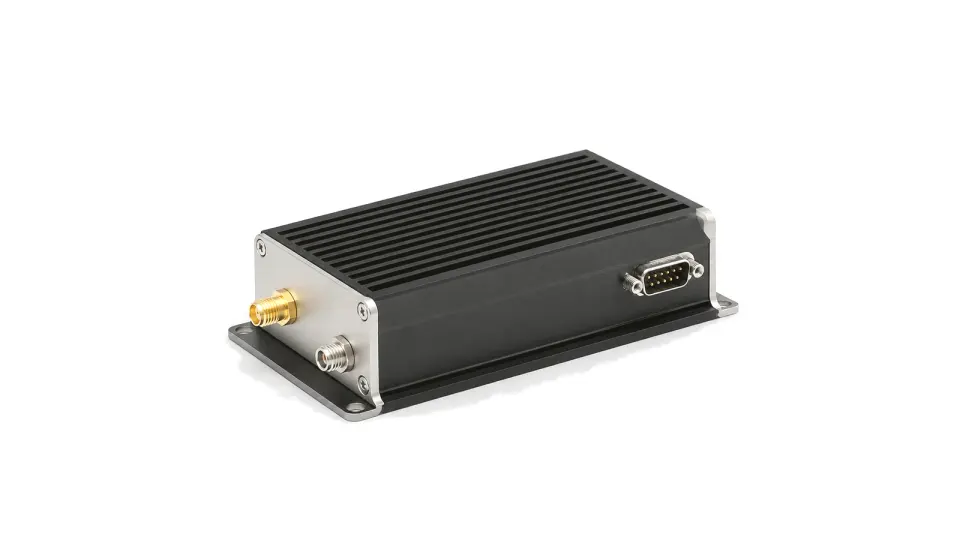

Synthesized RF source for agile frequency generation

Articles

Open RF synthesizer with OCXO and PLL circuitry connected to phase-noise measurement instruments on an unattended metrology bench
RF Signal Source EngineeringHow to Specify an RF Signal Source: Phase Noise, Spurs, Settling and Stability

A practical method for turning carrier, tuning, spectral-purity, reference-stability, switching and phase-coherence needs into an RF source specification that can be measured and accepted.

FAQ

What does PLL settling time mean, and why is lock detect not enough?

PLL settling time is the time from a defined disturbance until the RF output enters and remains inside specified frequency, phase, amplitude and spectral limits; lock detect is only an internal status signal.

When should an RF source use phase-noise spot limits versus integrated jitter?

Use phase-noise spot or mask limits when offset regions drive RF behavior; use integrated jitter only when the project defines the integration band and a time-domain error budget.

How should frequency accuracy, temperature stability, aging and holdover be specified?

Specify accuracy, temperature, aging and holdover as separate error terms with their own interval, environment, warm-up and reference history instead of one unexplained ppm value.

Engineering inquiry

Share your RF requirement

Share the product, operating requirements and project context. Our engineering team will route your request to the right specialist.

AttachmentsAttach drawings, BOMs, specifications or test files. Up to 5 files, 10 MB each and 25 MB total.
or drag and dropPDF, DOCX, XLSX, CSV, TXT, JPG, PNG, S1P and S2P
Typically reviewed within one business dayProject information is handled confidentially

Synthesized RF Sources

Synthesized RF sources generate tunable RF or microwave outputs through frequency synthesis where step size, switching time and spectral purity matter.

Source role

A synthesized source provides controlled frequency agility for test systems, converter chains, receiver stimulus and multi-frequency RF setups.

Key data

Relevant data includes tuning range, frequency resolution, switching time, lock status, output power, phase noise, spurious level, reference input and command interface.

What does the Synthesized RF Sources category cover?

Synthesized RF sources generate tunable RF or microwave outputs through frequency synthesis where step size, switching time and spectral purity matter.

How should hardware in the Synthesized RF Sources category be selected?

A practical method for turning carrier, tuning, spectral-purity, reference-stability, switching and phase-coherence needs into an RF source specification that can be measured and accepted.

  • Write the source requirement at the system boundary
  • Freeze the source contract before comparing architectures
  • Specify phase noise as a system mask, not a brochure spot value

Which specifications matter when evaluating Synthesized RF Sources?

Relevant data includes tuning range, frequency resolution, switching time, lock status, output power, phase noise, spurious level, reference input and command interface.

How should hardware in the Synthesized RF Sources category be tested and verified?

Specify an RF signal source at a named output reference plane and under a defined load, power, temperature and control state. Freeze the carrier ranges, step size, output level and waveform; allocate phase-noise limits over the offset regions that affect the system; bound harmonics, nonharmonic spurs and broadband noise; separate initial accuracy, temperature stability, aging and holdover; and define settling with a measurable error band and deadline. A shared reference or asserted lock signal is not proof of phase coherence or completed settling, so acceptance must retain traces from the actual tuning, restart and environmental states.

How to Specify an RF Signal Source: Phase Noise, Spurs, Settling and Stability
