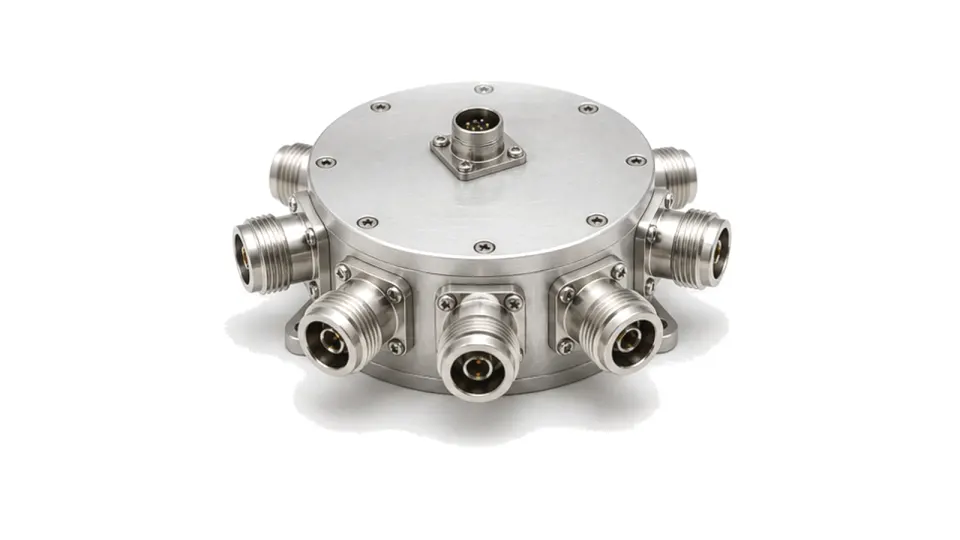

RF Relays

Interconnect choices affect loss and repeatability. RF Relays sits within Switching, Routing & Control and routes RF signals between paths while preserving isolation and repeatability. The content focuses on insertion loss, isolation, switching speed, power rating, lifetime and control method for engineers, sourcing teams and system integrators.

Project inquiry Download product list

FAQ

How do insertion loss, isolation and crosstalk affect an RF switch route?

Insertion loss reduces the wanted path; isolation and crosstalk bound unwanted energy between named routes, so all three must be budgeted at the assembled matrix ports.

When should an electromechanical RF switch be used instead of a solid-state switch?

Electromechanical and solid-state switches occupy different loss, isolation, speed, power, size, control and lifetime boundaries; the route and switching sequence decide which is preferable.

Which hot-switch, cold-switch and settling-time details belong in an RF switch RFQ?

An RFQ must separate carry power from power during transition and define the command, blanking, contact or logic change, RF settling, recovery and readback sequence.

Engineering inquiry

Share your RF requirement

Share the product, operating requirements and project context. Our engineering team will route your request to the right specialist.

RF Relays

Interconnect choices affect loss and repeatability. RF Relays routes RF signals between paths while preserving isolation and repeatability for T/R switching, test automation, receiver protection and multi-path RF systems. The information is organized around how this hardware is used in an RF system.

Key data centers on insertion loss, isolation, switching speed, power rating, lifetime and control method. Those details help engineering, sourcing and integration teams compare the record against the actual signal path, mechanical boundary and operating environment.

When reviewed with model data, outline dimensions, test conditions and delivery documents, the content makes project scope, constraints and follow-up verification points easier to align early.
